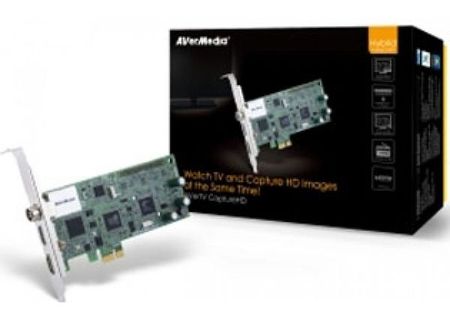

AVerMedia tv Capture HD hibrid
AVerMedia takes the lead of TV tuner card into a new generation. AVerTV CaptureHD is the first one in the world to provide users this new generation application.
Watch and Record 3DTV¹
The latest AVer MediaCenter comes with “Real 3D” function, which gives you the ability to watch and record live 3D TV broadcasting on your PC.
¹Please download the latest AVer MediaCenter for 3D functions.NVIDIA 3D Vision Kit, 3D-supported graphics card and 3D-ready display are required for live 3DTV functions.
Enjoy True HD 1080i:
AVerTV CaptureHD can support HDMI/HDCP input display up to 1080i² resolution and compact audio/video/composite/ component (1080i) interface for transmitting uncompressed digital data. It also can capture or record HD content in MPEG-2 format from PS3, Xbox 360 and digital camcorders. ³
²The 1080i will only function when the signal source comes from 1080i format.
³Supports HDCP-free recording in MPEG-2 format.
Watch TV and Play HD Game at the same time:
Exclusive PIP (Picture in Picture) Mode for users to play real-time HD games on the main screen and watch TV on PIP screen.
Enjoy your shows on iPod with real-time H.264 recording technology:
The latest AVer MediaCenter software program offers advanced real-time H.264 recording compression technology up to resolution of 320X240 iPod video format recording. It also saves more than 4X hard disk spaces comparing with MPEG-2 format.
Features:
• Worldwide Analog, DVB-T Digital TV & FM radio.
• Stereo Sound.
• 16:9 Widescreen Mode.
• MCE Software MPEG-2 encoder to be fully compliant with XP/Vista MCE platform.
• MCE Video Gaming Plug-in Support.
• Support SnugTV.
Features
Specifications:
Input Signal
• 75 Ω TV Antenna (IEC).
• HDMI/HDCP Input (up to 1080i/720p).
• Composite (RCA).
• Remote Sensor.
• S-Video.
• Audio In（L/R）x 2 Component (YPbPr).
System Requirements:
• For TimeShift and Record in MPEG-2: Intel Pentium 3.0GHz with HT (Hyper-Threading) or equivalent
• For HDTV (H.264) Preview and HD/HDMI Capture: Intel Core2 Duo 2.4GHz or equivalent, 1G RAM or above, VGA card supports DirectX 9.0c or above, PCI-Express x1 Slot, Sound card and Windows® XP / Vista or Windows® 7 OS.
Package Included:
• AVerTV CaptureHD.
• Installation CD.
• Quick Installation Guide.
• Remote Control (Batteries Included).
• FM Radio Antenna.
• Infrared Sensor cable.
• S-Video/Composite/Component+ Audio/Remote 10-in-1 Cable.
Note:
1. The accessories may slightly vary depending on the country purchased in or the particular model.
2. Please visit AVerMedia website for the most updated driver and application.
Technical Specification
Manufacturer: Avermedia Media Recorder: No
TV Type: Hybrid Media Center Compatible: Yes
Interface: PCIe (x1) Teletext: No
Connectivity: 1 x Composite Video (In)
1 x DVB-T
1 x HDMI
Radio: Yes
Supported TV Standards: DVB-T
Dual Tuner Compatible: No
HDTV Compatible: Yes Package Type: Retail
