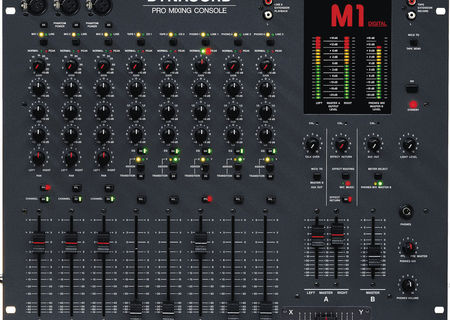

Mixer Dynacord M1
Mic Channels 2,7 mV
Line Inputs (mono) 30 mV
Line Inputs (stereo) 25 mV
Phono Inputs (cartridge) 0,6 mV
Equalizer
Mic Channels HIGH +/- 15 dB / 15 kHz
MID +/- 12 dB / 1,6 kHz
LOW +/- 15 dB / 40 Hz
Line/Phono Channels HIGH +/- 9 dB / 10 kHz
MID +/- 6 dB / 1,6 kHz
LOW +/- 9 dB / 70 Hz
Gain Mic/Line 40 dB
Gain Line/Phono 20 dB
Master A Stereo Output 1,23 V
Master A Mono Output 1,23 V
Master B Stereo Output 1,23 V
AUX Mono Output 1,23 V
Light Mono Output 3 V
Headphones Output 6V
Tape Record 165 mV
Frequency Response 10 Hz-100 kHz
Distortion (THD) 80 dB
Signal-to-Noise ratio > 85 dB
Mains Voltage 230 V AC
Power Consumption 45 VA
Dimensions (W x H x D) 483 x 399,2 x 163 mm
Mounting dimens. (W x H x D) 450 x 385 x 200 mm
Weight 19,85 lbs (9 kg)
Safety Class I
Retro?t Kits:
Digital Input NRS 90182
Input Transformer (Mic) NRS 90162
Output Transformer NRS 90183
